USER MANUAL 3 PORTS FIREWIRE PCI #F5U503 BELKIN

Thank you for purchasing the Belkin IEEE-1394 PCI upgrade card. Now you can add three 400 Mbps FireWire ports to your Windows® 98 SE, Windows® 2000, or Windows® Me computer system and enjoy the blazing speed and Plug-and-Play ease of next-generation FireWire devices.

Features:

Three external 400 Mb/ps IEEE 1394 ports
OHCI 1.0 Compliant
PCI 2.1 and 2.2 compliant
IEEE 1394a Rev 5 compliant
Internal auxiliary power connector
IT/AT FIFO Buffers - 4k/2k
IR/AR FIFO Buffers - 4k/2k

Minimum Recommended System Requirements:

266 Mhz Pentium II
32 Megabytes RAM
One Free PCI 2.1 compliant PCI Slot
- Windows® 98 SE, Windows® 2000, Windows® Me

Package Contents

Belkin IEEE 1394 PCI card
Installation CD
- User's Manual

Hardware Installation

1. Power off your computer and disconnect all connected devices and peripherals.

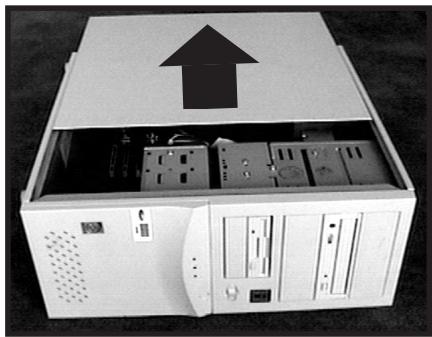

1. Open the case of your computer. Refer to your computer user manual for details regarding how to do this. Be sure to touch any bare metal portion of your computer case to discharge yourself of any static electricity, which can damage your computer, or the FireWire card.

Hardware Installation (continued)

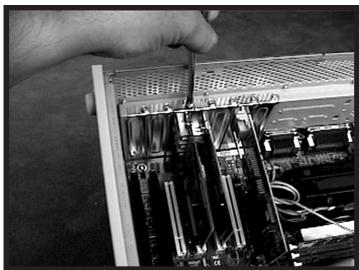

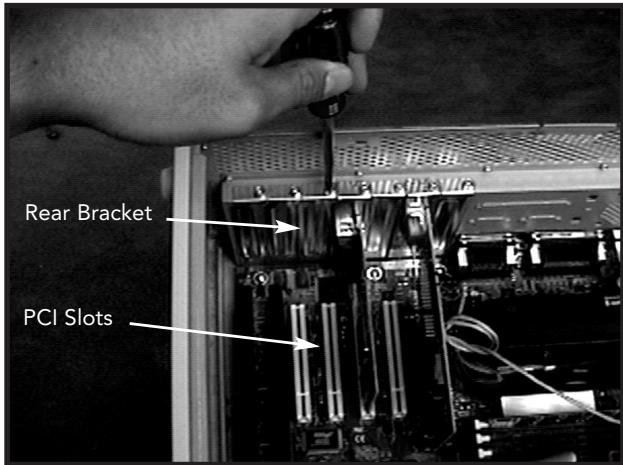

1. Locate the PCI slots on your computer's main circuit board. Locate a free PCI slot. Remove the metal plate that covers the rear slot corresponding to the PCI slot you had selected. You may need a cross-head/Phillips screwdriver to remove any screws. See the image below for your reference.

Hardware Installation (continued)

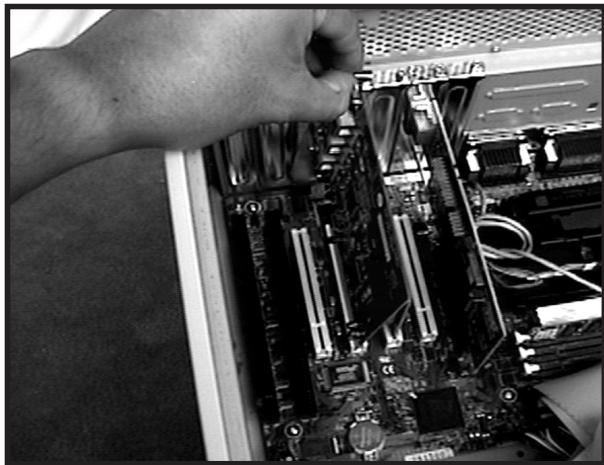

1. Remove the FireWire card from its protective static bag. Handle it by the metal bracket only, and do not touch the gold edge connectors. Insert the card into the PCI slot, carefully aligning the rear bracket to the computer case. Make sure that the gold fingers are fully inserted into the slot.

Hardware Installation (continued)

1. Fasten the card securely using the screw that was used to hold the rear bracket.

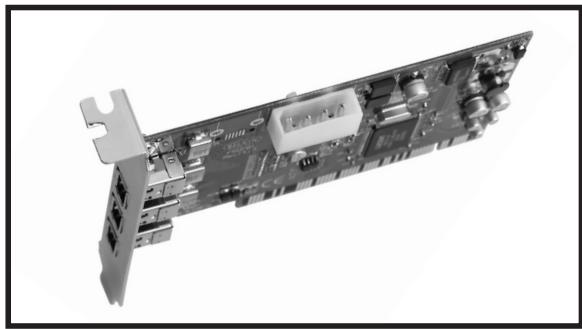

1. (Optional) If you are planning to connect multiple bus powered FireWire devices to the Belkin IEEE 1394 PCI card, it may be necessary to draw auxiliary power from your computers power supply. This is accomplished by connecting a spare disk drive power cable to the power connector on the PCI card.

Hardware Installation (continued)

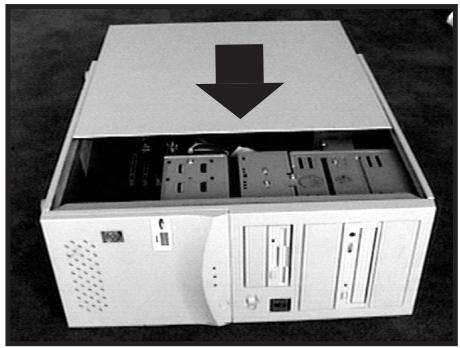

1. Close the computer case.

1. Re-attach all peripherals to your computer, and turn the power on.

Windows 98 SE Driver Installation

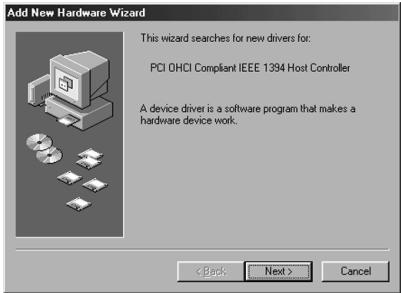

1. As Windows 98 SE starts the "New Hardware Wizard" will launch and recognize the IEEE 1394 PCI card as a "PCI OHCI compliant IEEE 1394 Host Controller". Click "Next".

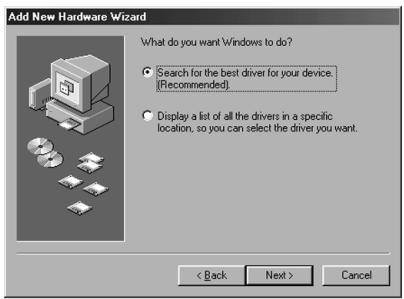

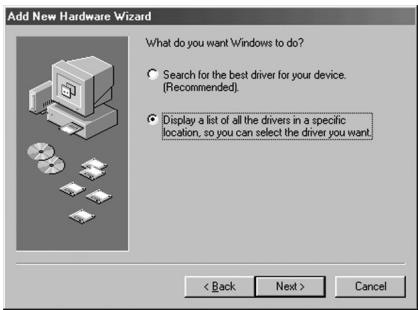

1. Select "Search for the best driver for your device (Recommended)". Click "Next".

Windows 98 SE Driver Installation (continued)

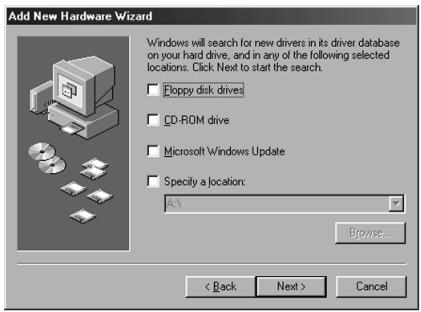

1. Uncheck all boxes. Click "Next".

1. Windows will now search its driver database for the correct driver. Click "Next.

Windows 98 SE Driver Installation (continued)

En

1. You may now be prompted to insert your Windows 98 SE installation disk. If so, insert the CD into your CD-ROM drive, and click "OK".

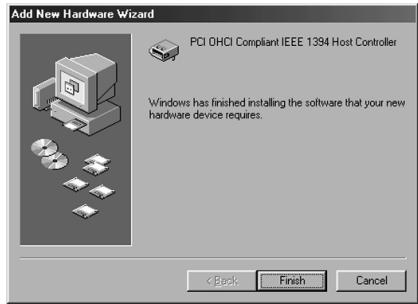

1. Driver Installation is now complete. Click "Finish".

Windows 2000 Driver Installation

1. As Windows 2000 starts the "New Hardware Wizard" will launch, and recognize the IEEE 1394 PCI card as a "OHCI Compliant IEEE 1394 Host Controller".

1. Windows will automatically install the correct driver and prompt you to restart your computer. Click "Yes". Installation is now complete and the IEEE 1394 PCI card will be ready to use after Windows restarts.

Windows Me Driver Installation

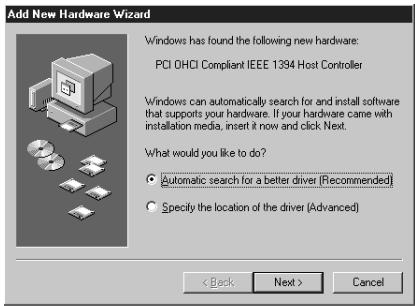

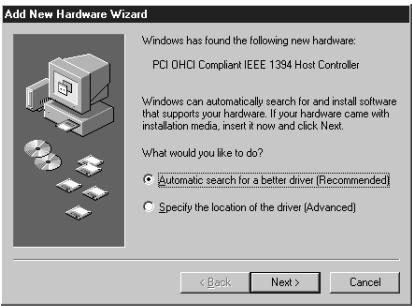

1. As Windows Me starts the "New Hardware Wizard" will launch, and recognize the IEEE 1394 PCI card as a "PCI OHCI Compliant IEEE 1394 Host Controller". Choose "Automatic search for a better driver (Recommended)". Click "Next".

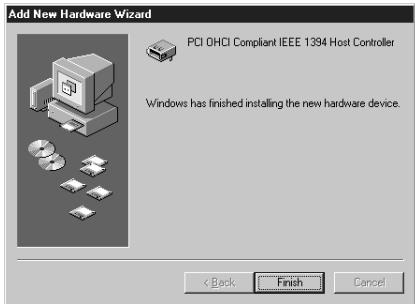

1. Windows will now locate and install the correct driver. Click "Finish".

Windows Me Driver Installation (continued)

1. Windows will automatically install the correct driver and prompt you to restart your computer. Click "Yes". Installation is now complete and the IEEE 1394 PCI card will be ready to use after Windows restarts.

FCC Statement

DECLARATION OF CONFORMITY WITH FCC RULES FOR ELECTROMAGNETIC COMPATIBILITY

We, Belkin Components, of 501 West Walnut Street, Compton CA 90220, declare under our sole responsibility that the product:

F5U503ea

to which this declaration relates:

Complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CE Declaration of Conformity

We, Belkin Components, declare under our sole responsibility that the FSU501, to which this declaration relates, is in conformity with Generic Emissions Standard EN50081-1 and with Generic Immunity Standard EN50082-1 1992.

Belkin Components Limited Lifetime Product Warranty

Belkin Components warrants this product against defects in materials and workmanship for its lifetime. If a defect is discovered, Belkin will, at its option, repair or replace the product at no charge provided it is returned during the warranty period, with transportation charges prepaid, to the authorized Belkin dealer from whom you purchased the product. Proof of purchase may be required.

This warranty does not apply if the product has been damaged by accident, abuse, misuse, or misapplication; if the product has been modified without the written permission of Belkin; or if any Belkin serial number has been removed or defaced.

THE WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE IN LIEU OF ALL OTHERS, WHETHER ORAL OR WRITTEN, EXPRESSED OR IMplied. BELKIN SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTYES, INCLUDING, WITHOUT LIMITATION, WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

No Belkin dealer, agent, or employee is authorized to make any modification, extension, or addition to this warranty.

BELKIN IS NOT RESPONSIBLE FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO LOSS PROFITS, DOWNTIME, GOODWILL, DAMAGE TO OR REPROGRAMMING, OR REPRODUCING ANY PROGRAM OR DATA STORED IN OR USED WITH BELKIN PRODUCTS.

BELKIN

belkin.com

Belkin Corporation

501 West Walnut Street • Compton • CA •

90220-5221 • USA

Tel [phone]

Fax [phone]

Belkin Ltd.

Express Business Park

Shipton Way · Rushden

NN10 6GL • United Kingdom

Tel [phone]

Fax [phone]

Belkin B.V.

Starparc Building • Boeing Avenue 333 •

1119 PH Schiphol-Rijk · The Netherlands

Tel [phone]

Fax [phone]

Belkin GmbH

Hanebergstrasse 2

80637 Munchen, Germany

Tel +49 (0) 89 / 1434 05-0

Fax +49 (0) 89 / 143405-100

Belkin SAS

Free Technical support

Tel: [phone]

e-mail: [e-mail]

© 2004 Belkin Corporation. All rights reserved.

All trade names are registered trademarks of respective manufacturers listed.

FireWire® is a trademark of Apple Computer, Inc. registered in the United States and other countries,

used under license. The Apple logo, FireWire® and the FireWire® logo are trademarks of Apple

Computer, Inc. registered in the United States and other countries, used under license. P74237ea
